Size Range
|
2″-40″
|
|
Pressure
|
PN10, PN16, Class150
|
|
Body Materials
|
Stainless Steel
|
|
Seat Materials
|
Stainless steel
|
|
Disc Materials
|
WCB, CF8,CF8M
|
|
Stem Materials
|
SS304, SS316
|
|
End Connection
|
Wafer
|
|
Operate
|
Worm gear
|

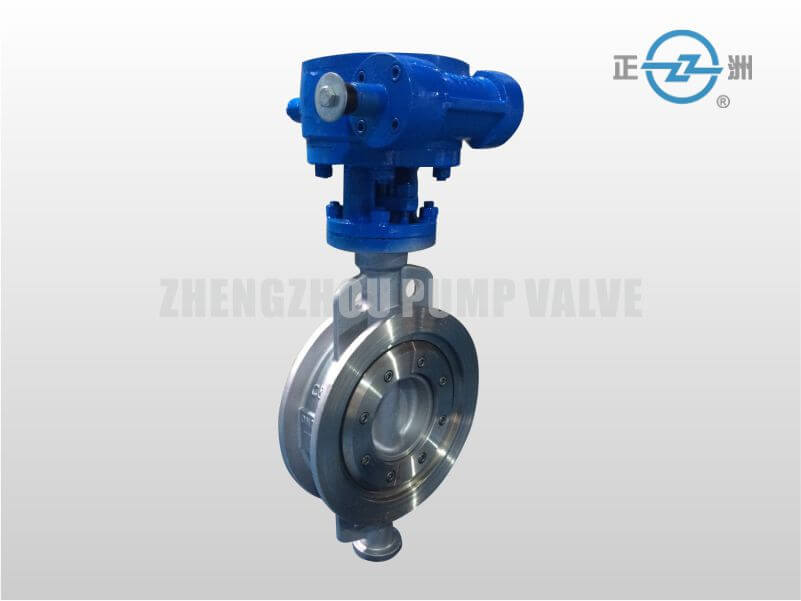

Triple offset Metal seated Butterfly Valve is light weight, easy to adjust flow, widely used in hydro power station, building industry, petroleum, chemical, steel,paper industry,typically for clean medium such as water, oil and gas Bi-directional offset Metal seated Butterfly Valve is option.

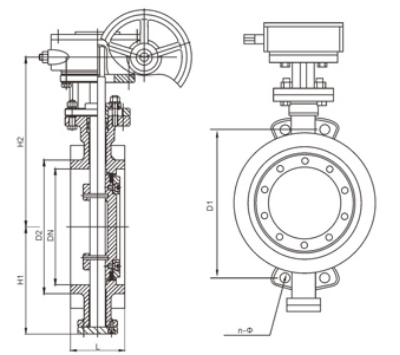

Dimension
|
DN
|
L
|
H1
|
H2
|
D1
|
D2
|
N-∅
|
|||
|
PN10
|
PN16
|
PN10
|
PN16
|
PN10
|
PN16
|
||||
|
DN50
|
43
|
85
|
196
|
125
|
100
|
4-18
|
|||
|
DN65
|
46
|
90
|
211
|
145
|
120
|
4-18
|
|||
|
DN80
|
49
|
100
|
230
|
160
|
135
|
4-18
|
|||
|
DN100
|
56
|
107
|
256
|
180
|
155
|
4-18
|
|||
|
DN125
|
64
|
123
|
288
|
210
|
185
|
4-18
|
|||
|
DN150
|
70
|
140
|
315
|
240
|
210
|
4-22
|
4-23
|
||
|
DN200
|
71
|
180
|
350
|
295
|
265
|
4-22
|
4-23
|
||
|
DN250
|
76
|
200
|
398
|
350
|
355
|
320
|
4-22
|
4-25
|
|
|
DN300
|
83
|
250
|
431
|
400
|
410
|
370
|
375
|
4-22
|
4-25
|
|
DN350
|
92
|
270
|
478
|
460
|
470
|
430
|
435
|
4-M20
|
4-M22
|
|
DN400
|
102
|
350
|
513
|
515
|
525
|
480
|
485
|
4-M24
|
4-M27
|
|
DN450
|
114
|
365
|
550
|
565
|
582
|
530
|
545
|
4-M24
|
4-M27
|
|
DN500
|
127
|
410
|
615
|
620
|
650
|
585
|
610
|
4-M24
|
4-M30
|
|
DN600
|
154
|
470
|
670
|
725
|
770
|
685
|
725
|
4-M27
|
4-M33
|
|
DN700
|
165
|
495
|
750
|
840
|
840
|
795
|
795
|
4-M27
|
4-M33
|
|
DN800
|
190
|
575
|
820
|
950
|
950
|
900
|
900
|
4-M30
|
4-M36
|
|
DN900
|
203
|
620
|
895
|
1050
|
1050
|
1000
|
1000
|
4-M30
|
4-M36
|
|
DN1000
|
216
|
680
|
990
|
1160
|
1170
|
1115
|
1115
|
4-M33
|
4-M39
|
