double counterweight turbine inlet valve
  • DESIGN STANDARD: DIN/AWWA
  • SIZE: DN200~ DN4000
  • PTRESSURE: PN6 / PN10 / PN16 / PN25 / PN40
  • TEMP:       ≤80℃
  • MEDIUM: fresh water, sea water, sand water, oil etc.
  • BODY STRUCTURE: three eccentric metal sealing or double eccentric rubber sealing
  • Materials: Body: Carbon Steel /Grey Cast Iron/Ductile Iron

Disc: Carbon Steel /Grey Cast Iron/Ductile Iron

SEAT: EPDM / SS

  • Open/close parameters
DN <1000 >=1000
Valve open time 10~60s 20~120s
Valve close time Rapid closed 1.5~15s 2.5~30s
Slow closed 2.5~60s 6~90s
Valve close degree Quick closed 75°±10° 75°±10°
Slow closed 15°±10° 15°±10°

Note: Special requirement is available under request.

Also named dashpot function hydraulic butterfly valve with hammer(slow closing)

The butterfly valve are common used in hydro power plant and dams. The valve acts both protection and maintenance role for turbine ,penstock, upstream discharge, intake of water tower etc.

  • Penstock Protection:

    the valve takes safety and maintenance role for the penstock. Usually in large diameters.

  • Turbine inlet Protection:

    the valve takes safety and maintenance role for the turbine. Usually the valves features high water pressures.

  • Water Discharge Line:

    the valve acts as both a safety and maintenance device for the upstream discharge.

Features:

  • Small flow co-efficiency
  • Automatic
  • Energy saving

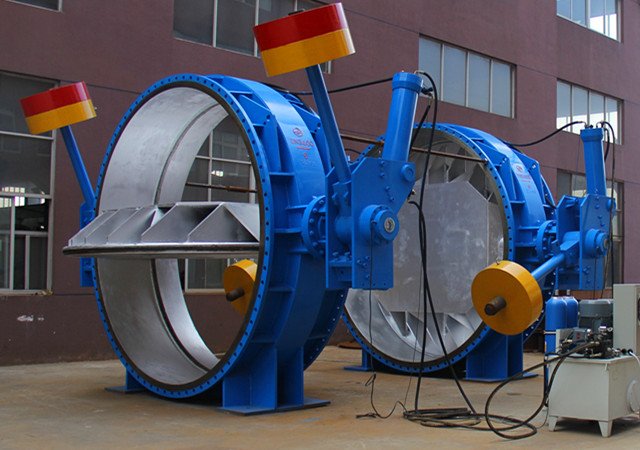

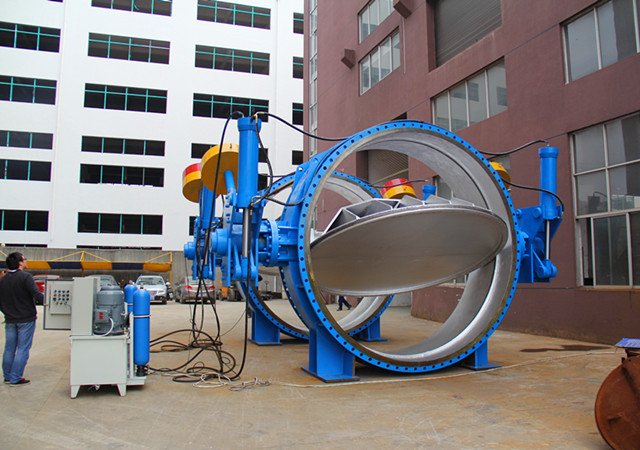

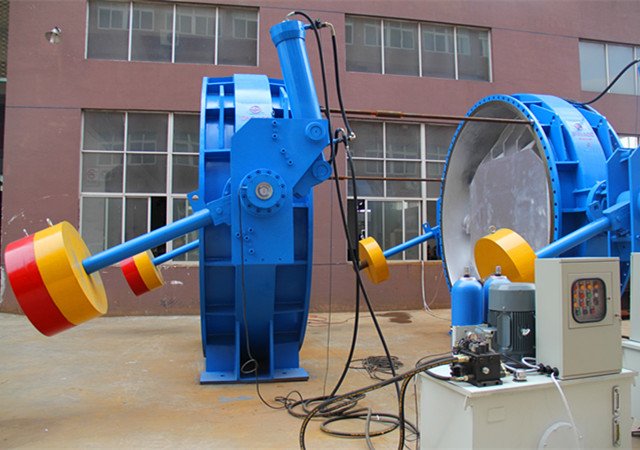

double counterweight drawing
