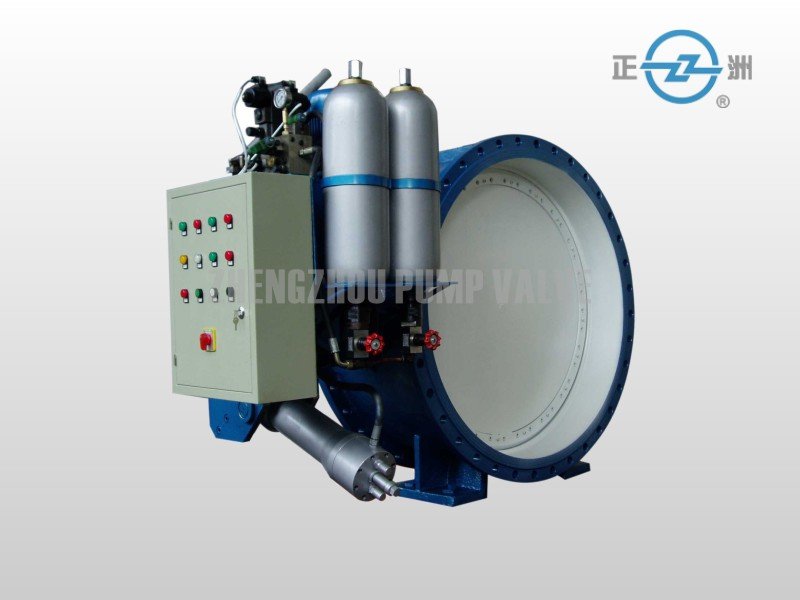

Intelligent Accumulator Type Hydraulic Control Valve

Nominal diameter : DN150 ~ DN3500

Nominal pressure : PN2.5 ~ PN40

Suitable medium : water, sea water , sediment water, oil , etc.

Medium temperature : ≤80 ℃

Valve open time : 10 to 120 seconds ( adjustable)

Quick closing time: 1.5 to 30 seconds (adjustable )

Slow closing time: 6 to 120 seconds ( adjustable)

Fast off angle : 70 ° ± 10 °

Slow off angle : 20 ° ± 10 °

Full state minimum flow resistance coefficient : 0.1

Optional control power supply : AC220V, DC220V, DC110V, DC24V

 WORKING PRINCIPLE:

In operation, the valve and the pipe , in accordance with the principle of hydraulic transition process , through an effective set of electro-hydraulic control program , reliable cutoff line , effectively eliminate pipeline water hammer , can achieve without electricity automatically close the valve , protect the pipeline system.



ADVANTAGES:

Intelligent accumulator type hydraulic control valve to ease the closure of compressed air can automatically close the valve.

PLC intelligent control system , according to user requirements to install manual, automatic locking device , flow resistance coefficient ,high degree of automation , stable and reliable performance , new generation of intelligent energy-efficient products .

It can be integrated type or can be separate installation.

Body material: WCB, Stainless steel etc.

Note: Other materials are available upon request.

APPLICATIONS:

Fluid control slow closed valve is advanced pipeline control equipment installed in the main turbine inlet station; or installed in the pump outlet water, electricity , drainage and other types of pumping station for instead of the check valve and gate valve.
